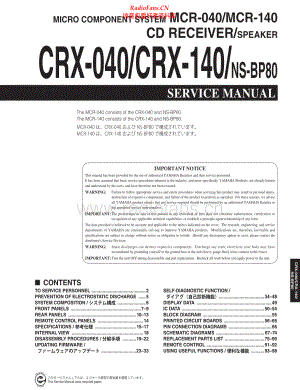

Yamaha-MCR140-cs-sm 维修电路原理图.pdf

CRX-040/CRX-140/NS-BP801 0 11 5 7SERVICE MANUALIMPORTANT NOTICEThis manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.It has been assumed that basic service procedures inherent to the industry, and more specifi cally YAMAHA Products, are already known and understood by the users, and have therefore not been restated.WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specifi ed. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA Retailer or the appointed service representative.IMPORTANT: The presentation or sale of this manual to any individual or fi rm does not constitute authorization, certifi cation or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifi cations are subject to change without notice or obligation to retrofi t. Should any discrepancy appear to exist, please contact the distributors Service Division.WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit. CONTENTSTO SERVICE PERSONNEL .2PREVENTION OF ELECTROSTATIC DISCHARGE .5SYSTEM COMPOSITION / 構成 .6FRONT PANELS .79REAR PANELS .1013REMOTE CONTROL PANELS .14SPECIFICATIONS / 参考仕様 .1517INTERNAL VIEW .18DISASSEMBLY PROCEDURES / 分解手順 .1922UPDATING FIRMWARE / .2333SELF-DIAGNOSTIC FUNCTION / （自己診断機能） .3448DISPLAY DATA .49IC DATA .5054BLOCK DIAGRAM .55PRINTED CIRCUIT BOARDS .5665PIN CONNECTION DIAGRAMS .66SCHEMATIC DIAGRAMS .6774REPLACEMENT PARTS LIST .7590REMOTE CONTROL .9192USING USEFUL FUNCTIONS / 便利機能 .939809.12P.O.Box 1, Hamamatsu, JapanThe MCR-040 consists of the CRX-040 and NS-BP80.The MCR-140 consists of the CRX-140 and NS-BP80.MCR-040 、CRX-040 NS-BP80 構成。MCR-140 、CRX-140 NS-BP80 構成。Copyright 2009 All rights reserved.This manual is copyrighted by YAMAHA and may not be copied orredistributed either in print or electronically without permission.CD RECEIVER/SPEAKERCRX-040/CRX-140/NS-BP80MICRO COMPONENT SYSTEMMCR-040/MCR-140RadioFans.CN 收音机爱 好者资料库2CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm.DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHATSOEVER!Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor!If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.1. Critical Components InformationComponents having special characteristics are marked and must be replaced with parts having specifications equal to those originally installed.2. Leakage Current Measurement (For 120V Models Only)When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits. Meter impedance should be equivalent to 1500 ohms shunted by 0.15 F.本機搭載基板付接合部無鉛付。無鉛種類、修理時下記無鉛使用推奨。 Sn+Ag+Cu（錫 + 銀 + 銅） Sn+Cu（錫 + 銅） Sn+Zn+Bi（錫 + 亜鉛 + ）注意：無鉛融点温度通常鉛入比 30 40程度高、 合使用。All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work. Sn + Ag + Cu (tin + silver + copper) Sn + Cu (tin + copper) Sn + Zn + Bi (tin + zinc + bismuth)Caution:As the melting point temperature of the lead free solder is about 30C to 40C (50F to 70F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder. TO SERVICE PERSONNEL Leakage current must not exceed 0.5mA. Be sure to test for leakage with the AC plug in both polarities.WALLOUTLETEQUIPMENTUNDER TESTAC LEAKAGETESTER OREQUIVALENTINSULATINGTABLEWARNING: CHEMICAL CONTENT NOTICE!About lead free solder / 無鉛For U model“CAUTION”“F1: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 1.25A, 125V FUSE.”For C modelCAUTIONF1: REPLACE WITH SAME TYPE 1.25A, 125V FUSE.ATTENTIONF1: UTILISER UN FUSIBLE DE RECHANGE DE MME TYPE DE 1.25A, 125V.RadioFans.CN 收音机爱 好者资料库3CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.WARNING: Lithium batteries注意正電池交換爆発起。同一型名同等品以外電池絶対交換。WARNING: Lithium batteries are dangerous because they can be exploded by improper handling. Observe the following precautions when handling or replacing lithium batteries. Leave lithium battery replacement to qualified service personnel. Always replace with batteries of the same type. When installing on the PC board by soldering, solder using the connection terminals provided on the battery cells. Never solder directly to the cells. Perform the soldering as quickly as possible. Never reverse the battery polarities when installing. Do not short the batteries. Do not attempt to recharge these batteries. Do not disassemble the batteries. Never heat batteries or throw them into fire.ADVARSEL!Lithiumbatteri Eksplosionsfare ved fejlagtig hndtering.Udskiftning m kun ske med batteri af samme fabrikat og type. Levr det brugte batteri tilbage til leverandren.VARNINGExplosionsfara vid felaktigt batteribyte. Anvnd samma batterityp eller an ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvnt batteri enligt fabrikantens instruktion.VAROITUSParisto voi rjht, jos se on virheellisesti asennettu.Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hvit kytetty peristo valmistajan ohjeiden mukaisesti.WARNING: Laser SafetyThis product contains a laser beam component. This component may emit invisible, as well as visible radiation, which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must be used during servicing of the unit.1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm/1 feet away from the laser pick-up unit at all times. Do not stare at the laser beam at any time.2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.3) CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.Laser Emitting conditions:1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the “ON” position, the laser component will emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through the lens of the laser pick-up unit. Do not attempt any servicing during this period!If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser emissions.2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this manual. Adjustment of this control can increase the laser emission level from the device.4CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80Laser Diode PropertiesType: Semiconductor laser GaAs/GaAlAsWavelength: 780 nmOutput power: 10 mWThe primary side of the power supply carries live mains voltage when the player is connected to the mains even when the player is switched off !This primary area is not shielded so it is possible to accidentally touch copper tracks and/or components when servicing the player.Service personnel have to take precautions to prevent touching this area or components in this area.Note:The screws on the loader mechanism may never be touched, removed or re-adjusted.Handle the loader mechanism with care when the unit has to be exchanged!The loader mechanism is very sensitive for dropping or giving shocks.Warning for power supply5CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can generate electrical charge sufficient to damage ES devices.5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as brushing together of your fabric clothes or lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).Grounding for electrostatic breakdown prevention1. Human body grounding.Use the antistatic wrist strap to discharge the static electricity from your body.2. Work table grounding.Put a conductive material (sheet) or steel sheet on the area where the optical pickup is placed and ground the sheet.Caution:The static electricity of your clothes will not be grounded through the wrist strap. So take care not to let your clothes touch the optical pickup. PREVENTION OF ELECTROSTATIC DISCHARGE1M-ohmsConductive material(sheet) or steel sheetAnti-static wrist strap6CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80 SYSTEM COMPOSITION / 構成The MCR-040 consists of the CRX-040 and NS-BP80.The MCR-140 consists of the CRX-140 and NS-BP80.MCR-040 、CRX-040 NS-BP80 構成。MCR-140 、CRX-140 NS-BP80 構成。 NS-BP80 NS-BP80 NS-BP80 NS-BP80MCR-040MCR-140 CRX-140 CRX-0407CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80U, T, K, A, B, G, L, V, J modelsU, T, A, B, G, L, V, J models FRONT PANELSCRX-140CRX-0408CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80U, T, K, A, B, G, L, V, J modelsNS-BP809CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80 Color Variations / OR : Orange color / WH : White color / LG : Light Gray color / DG : Dark Gray color / LB : Light Blue color / DB : Dark Blue color / RE : Red color / PI : Pink color / DN : Dark Green color / BR : Brown color / 10CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80 REAR PANELSU modelK modelB modelT modelA modelG modelCRX-04011CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80L modelJ modelV modelCRX-04012CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80U modelA modelG modelT modelB modelL modelCRX-14013CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80U, T, K, A, B, G, L, V, J modelsV modelJ modelCRX-140NS-BP8014CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80 REMOTE CONTROL PANELSU, T, K, A, B, G, L, V modelsJ modelCRX-040CRX-14015CRX-040/CRX-140/NS-BP80CRX-040/CRX-140/NS-BP80 SPECIFICATIONS / 参考仕様 Amplifier Section / 部Maximum Power / 実用最大出力 (JEITA, 1 kHz, 10 % THD, 6 ohms) SP OUT .15 W + 15 WMinimum RMS Output Power / 定格出力 (1 kHz, 0.9 % THD, 6 ohms)SP OUT .13 W + 13 WInput Sensitivity/Input Impedance / 入力感度入力 (1 kHz, 20 W)PORTABLE . 450 mV / 22 k-ohmsMaximum Input Signal Level / 最大許容入力 (1 kHz, 0.5 % THD) PORTABLE .2.5 V or moreOutput Level/Output Impedance / 出力電圧出力 (1 kHz, 450 mV, 32 ohms)Headphone . 270 mV / 100 ohmsSignal to Noise Ratio / 信号対雑音比 (Portable, IHF-A network, Input shorted 450 mV)SP OUT . 85 dB or moreTotal Harmonic Distortion / 全高調波歪率 (Portable, 20 kHz LPF, CD etc., 1 kHz, 1 W)SP OUT .0.05 % or lessTone Control / 特性 (SP OUT) BASS (100 Hz) . 6 dBTREBLE (10 kHz) . 6 dB Tuner Section / 部FM Tuning Range / FM 受信周波数範囲 U model .87.5 to 107.9 MHzT, K, A, B, G, L, V models .87.50 to 108.00 MHzJ model .76.0 to 90.0 MHz CD Section / CD 部Playback System / 再生 Media .CD, CD-R/RWAudio format .CD-DA, MP3, WMA)Audio Performance / 部再生 DAC .192 kHz/24 bit Input/Output Section / 入出力部Input Terminal / 入力端子Analog Audio PORTABLE (mini jack) .x 1Other USB (1.1, full speed) .x 1Audio format / .MP3, WMAiPod (CRX-040) .x 1Supported iPod / 対応 iPod .iPod (5th generation)iPod classiciPod nanoiPod touchOutput Terminal / 出力端子Analog Audio SPEAKERS .L/RHeadphone .x 1Charging Terminal / 充電端子Transmitter (for charging iPod) .x 1 Transmitter Section / 部 (YIT-W11TX)Frequency / 周波数 .2.4 GHzTransmission range / 通信可能距離 .Approx. 10 m (32.8 ft)(without interference / 妨害時 )Number of units which can be simultaneously transmitted to / 同時接続台数 .Up to 7 units / 最大 7 台(depending on the circumstances / 場所状況異 ) Speaker Section / 部 (NS-BP80)Type / 型式 .Advanced Yamaha Active Servo Technology Driver / . Full-range 10 cm (3/8”) cone typeNon-magnetic shielding type非防磁型Frequency Response / 再生周波数帯域 .50 Hz to 18 kHz (-10 dB)50 Hz to 24 kHz (-30 dB)Input Terminal / 入力端子 .Push type / 型 General / 総合Power Supply / 電源電圧 U model .AC 120 V, 60 HzT model .AC 220 V, 50 HzK model .AC 220 V, 60 HzA model .AC 240 V, 50 HzB, G models .AC 230 V, 50 HzL model . AC 220/230240 V, 50/60 HzV model .AC 110/120 V, 60 HzJ model .AC 100 V, 50/60 HzPower Consumption / 消費電力 .25 WStandby Power Consumption (r
