Pioneer-VSX1016VS-avr-sm 维修电路原理图.pdf

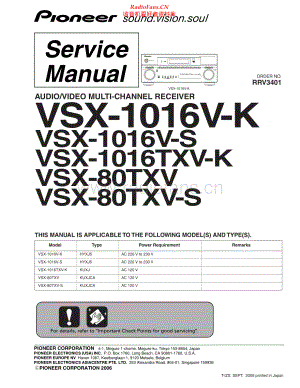

ORDER NO.PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, JapanPIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, BelgiumPIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2006 VSX-1016V-K RRV3401 AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-1016V-K VSX-1016V-SVSX-1016TXV-KVSX-80TXVVSX-80TXV-S THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). ModelTypePower RequirementRemarks VSX-1016V-KHYXJ5AC 220 V to 230 VVSX-1016V-SHYXJ5AC 220 V to 230 VVSX-1016TXV-KKUXJAC 120 VVSX-80TXVKUXJCAAC 120 VVSX-80TXV-SKUXJCAAC 120 VFor details, refer to Important Check Points for good servicing. T-IZS SEPT. 2006 printed in JapanRadioFans.CN 收音机爱 好者资料库 VSX-1016V-K212341234CDFABE SAFETY INFORMATION1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician.LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60 Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5 mA.ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual.The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. LeakagecurrenttesterReading shouldnot be above0.5 mADeviceundertestTest allexposed metalsurfacesAlso test withplug reversed(Using AC adapterplug as required)EarthgroundAC Leakage Test(FOR USA MODEL ONLY)WARNINGThis product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm.Health & Safety Code Section 25249.6 - Proposition 65NOTICE(FOR CANADIAN MODEL ONLY)Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation.REMARQUE(POUR MODLE CANADIEN SEULEMENT)Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pices de remplacement doivent avoir la mme dsignation.This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual.Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.RadioFans.CN 收音机爱 好者资料库 VSX-1016V-K356785678CDFABEImportant Check Points for Good ServicingIn this manual, procedures that must be performed during repairs are marked with the below symbol.Please be sure to confirm and follow these procedures.1. Product safetyPlease conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual.1 Use specified parts for repair.Use genuine parts. Be sure to use important parts for safety.2 Do not perform modifications without proper instructions.Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise.3 Make sure the soldering of repaired locations is properly performed.When you solder while repairing, please be sure that there are no cold solder and other debris.Soldering should be finished with the proper quantity. (Refer to the example)4 Make sure the screws are tightly fastened.Please be sure that all screws are fastened, and that there are no loose screws.5 Make sure each connectors are correctly inserted.Please be sure that all connectors are inserted, and that there are no imperfect insertion.6 Make sure the wiring cables are set to their original state.Please replace the wiring and cables to the original state after repairs.In addition, be sure that there are no pinched wires, etc.7 Make sure screws and soldering scraps do not remain inside the product.Please check that neither solder debris nor screws remain inside the product.8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.Damaged power cords may lead to fire accidents, so please be sure that there are no damages.If you find a damaged power cord, please exchange it with a suitable one.9 There should be no spark traces or similar marks on the power plug.When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary.0 Safe environment should be secured during servicing.When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely. 2. AdjustmentsTo keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.Adjustments should be performed in accordance with the procedures/instructions described in this manual.4. CleaningFor parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances.3. Lubricants, Glues, and Replacement partsUse grease and adhesives that are equal to the specified substance. Make sure the proper amount is applied.5. Shipping mode and Shipping screwsTo protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual. VSX-1016V-K412341234CDFABE CONTENTS 1. SPECIFICATIONS .62. EXPLODED VIEWS AND PARTS LIST.102.1 PACKING SECTION .102.2 EXTERIOR SECTION.122.3 CHASSIS SECTION .142.4 REAR SECTION.162.5 POWER AMP SECTION.202.6 FRONT PANEL SECTION .223. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.243.1 BLOCK DIAGRAM for AUDIO BLOCK.243.2 BLOCK DIAGRAM for VIDEO BLOCK.263.3 OVERALL WIRING DIAGRAM.283.4 AUDIO IN ASSY (1/2) .303.5 AUDIO IN (2/2) and 12V-REG ASSYS.323.6 MAIN CONTROL ASSY (1/2).343.7 MAIN CONTROL (2/2), GUARD-C, F and R ASSYS.363.8 DSP ASSY (1/2)(for VSX-1016V).383.9 DSP ASSY (2/2)(for VSX-1016V).403.10 DSP ASSY (1/2)(for VSX-1016TXV and VSX-80TXV).423.11 DSP ASSY (2/2)(for VSX-1016TXV and VSX-80TXV).443.12 COMPOSITE ASSY.463.13 S-VIDEO and BRIDGE 2 ASSYS .483.14 COMPONENT ASSY.503.15 DISPLAY, VOLUME and MULTI JOG ASSYS.523.16 HEADPHONE, FRONT-IN, PRIMARY and TRANS 1 ASSYS .543.17 TRANS 2-1, DIODE 1, VH TR and PS/SP ASSYS .563.18 TRANS 2-2, TRANS SIDE, LOCAL P-SUPPLY, DC/DC, IR I/O and VIDEO CONNECT ASSYS .583.19 POWER AMP-L, POSI 1-L and POSI 2-L ASSYS.603.20 POWER AMP-R and POSI 1-R ASSYS.623.21 BRIDGE 1-L, POWER AMP IN and POWER PROTECT ASSYS.643.22 HDMI & DVC ASSY.663.23 USB ASSY (VSX-1016V ONLY).684. PCB CONNECTION DIAGRAM .704.1 AUDIO IN ASSY.724.2 12V-REG ASSY .764.3 BRIDGE 2 ASSY.774.4 MAIN CONTROL ASSY.784.5 DSP ASSY (for VSX-1016V).824.6 DSP ASSY (for VSX-1016TXV and VSX-80TXV).864.7 COMPOSITE ASSY.904.8 S-VIDEO ASSY.944.9 COMPONENT ASSY.984.10 DISPLAY ASSY.1024.11 VOLUME ASSY.1064.12 HEADPHONE ASSY.1074.13 MULTIJOG ASSY.1084.14 FRONT-IN ASSY.1124.15 PRIMARY ASSY .1164.16 TRANS 1 ASSY .1204.17 TRANS 2-1 ASSY .1214.18 DIODE 1 and VH TR ASSYS .1224.19 BRIDGE 1-L ASSY .1234.20 PS/SP ASSY.1244.21 TRANS 2-2 ASSY .1284.22 POSI 1-L, POSI 2-L and POSI 1-R ASSYS.1294.23 TRANS SIDE ASSY.1304.24 LOCAL P-SUPPLY ASSY .1324.25 DC/DC ASSY.1344.26 IR I/O ASSY.1364.27 VIDEO CONNECT ASSY.1384.28 POWER AMP-L ASSY.1404.29 POWER AMP-R ASSY .1444.30 POWER AMP IN ASSY.1484.31 POWER PROTECT ASSY.1504.32 HDMI & DVC ASSY.152 VSX-1016V-K556785678CDFABE 4.33 USB ASSY (VSX-1016V ONLY) .1565. PCB PARTS LIST.1586. ADJUSTMENT .1927. GENERAL INFORMATION .1937.1 DIAGNOSIS.1937.1.1 TEST MODE.1937.1.2 PROTECTION CIRCUIT SPECIFICATION.1967.1.3 DSP TROUBLESHOOTING.1987.1.4 HDMI TROUBLESHOOTING .2097.1.5 USB MODULE.2177.1.6 HOW TO UPDATE FIRMWARE.2227.1.7 DISASSEMBLY .2237.2 PARTS .2317.2.1 IC.2318. PANEL FACILITIES .240 VSX-1016V-K612341234CDFABE 1. SPECIFICATIONSSpecificationsContinuous Power Output StereoFront. . . . . . . . 150 W + 150 W (DIN 1 kHz, THD 1 %, 6 )Continuous Power Output Multichannel(DIN 1 kHz, THD 1 %, 6 )Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 W + 150 WCenter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 WSurround . . . . . . . . . . . . . . . . . . . . . . . . . . 150 W + 150 WSurround back . . . . . . . . . . . . . . . . . . . . . . 150 W + 150 WRated Power Output Stereo(20 Hz to 20 kHz, 0.09 %, 8 ) . . . . . . . . . . . 140 W+140 W The above specifications are applicable when the power supply is 230V.Audio SectionInput (Sensitivity/Impedance)LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 mV/47 kFrequency Response (LINE). . . . . 5 Hz to 100 000 Hz dBOutput (Level/Impedance)REC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 mV/2.2 kTone ControlBASS . . . . . . . . . . . . . . . . . . . . . . . . . . 6 dB (100 Hz)TREBLE . . . . . . . . . . . . . . . . . . . . . . . . 6 dB (10 kHz)LOUDNESS. . . . . . . . . . . +4 dB / +2 dB (100Hz/10 kHz)(at volume position 40 dB)Signal-to-Noise Ratio (IHF, short circuited, A network)LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 dBSignal-to-Noise RatioDIN (continuous rated power output/50mW)LINE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 dB / 65 dBComposite Video / S-Video SectionInput (Sensitivity/Impedance) . . . . . . . . . . . . . . 1 Vp-p/75Output (Level/Impedance) . . . . . . . . . . . . . . . . . 1 Vp-p/75Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . 65 dBFrequency Response . . . . . . . . . . . . . . . . . 5 Hz to 10 MHzComponent Video SectionInput (Sensitivity/Impedance) . . . . . . . . . . . . . . 1 Vp-p/75Output (Level/Impedance) . . . . . . . . . . . . . . . . . 1 Vp-p/75Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . 65 dBFrequency Response . . . . . . . . . . . . . . . . 5 Hz to 100 MHzFM Tuner SectionFrequency Range . . . . . . . . . . . . . . . 87.5 MHz to 108 MHzUsable Sensitivity . . . . . Mono: 15.2 dBf, IHF (1.6 V/75)50 dB Quieting Sensitivity . . . . . . . . . . . . . . Mono: 20.2 dBfStereo: 41.2 dBfSensitivity (DIN) . . . . . . . . . . . . . Mono: 1.1 V (S/N 26 dB)Stereo: 50 V (S/N 46 dB)Signal-to-Noise Ratio . . . . . . . . . . Mono: 76 dB (at 85 dBf)Stereo: 72 dB (at 85 dBf)Signal-to-Noise Ratio (DIN) . . . . . . . . . . . . . . . Mono: 62 dBStereo: 58 dBDistortion . . . . . . . . . . . . . . . . . . . . . . Stereo: 0.6% (1 kHz)Alternate Channel Selectivity . . . . . . . . . . . 70 dB (400 kHz)Stereo Separation . . . . . . . . . . . . . . . . . . . . . 40 dB (1 kHz)Frequency Response . . . . . . . . . . . 30 Hz to 15 kHz 1dBAntenna Input . . . . . . . . . . . . . . . . . . . . . . 75 unbalancedAM Tuner SectionFrequency Range . . . . . 531 kHz to 1602 kHz (9 kHz step)Sensitivity (IHF, Loop antenna) . . . . . . . . . . . . . . 350 V/mSelectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dBSignal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . 50 dBAntenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Loop antennaMiscellaneousPower Requirements. . . AC 220 V to 230 V, 50 Hz / 60 HzPower Consumption . . . . . . . . . . . . . . . . . . . . . . . . . 450 WIn standby . . . . . . . . . . . . . . . . . . . . . . . . . Less than 0.5 WDimensions . . . . . 420 (W) mm x 173 (H) mm x 465 (D) mmWeight (without package). . . . . . . . . . . . . . . . . . . . . 15.0 kgFurnished PartsSetup microphone (for Auto MCACC setup). . . . . . . . . . . .1AA/LR6 dry cell batteries. . . . . . . . . . . . . . . . . . . . . . . . . . 2Remote control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1These operating instructions Note Specifications and the design are subject to possible modifications without notice, due to improvements.For VSX-1016V-K and VSX-1016V-S VSX-1016V-K756785678CDFABEAmplifier section (VSX-80TX and VSX-80TXV-S)Continuous average power output of 110 watts* per channel, min., at 8 ohms, from 20 Hz to 20 000 Hz with nomore than 0.09 %* total harmonic distortion (front).Continuous Power Output (20 Hz to 20 kHz, 8 , 0.09 %)Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110 W + 110 WCenter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 WSurround . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 W + 110 WSurround back . . . . . . . . . . . . . . . . . . . . . . .110 W + 110 WContinuous Power Output (1 kHz, 6 , 1.0 %)Front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150 W + 150 WCenter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 WSurround . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 W + 150 WSurround back . . . . . . . . . . . . . . . . . . . . . . .150 W + 1
