HarmanKardon-AVR745-avr-sm2维修电路原理图.pdf

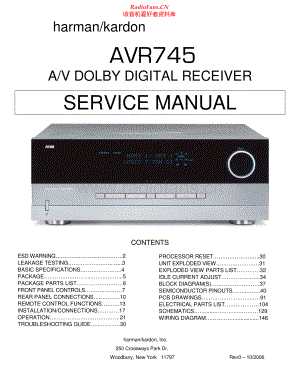

harman/kardon AVR745 AVR745 A/V DOLBY DIGITAL RECEIVER SERVICE MANUAL CONTENTS ESD WARNING.2 LEAKAGE TESTING.3 BASIC SPECIFICATIONS.4 PACKAGE.5 PACKAGE PARTS LIST.6 FRONT PANEL CONTROLS.7 REAR PANEL CONNECTIONS.10 REMOTE CONTROL FUNCTIONS.13 INSTALLATION/CONNECTIONS17 OPERATION21 TROUBLESHOOTING GUIDE.30 PROCESSOR RESET.30 UNIT EXPLODED VIEW31 EXPLODED VIEW PARTS LIST.32 IDLE CURRENT ADJUST.34 BLOCK DIAGRAM(S)37 SEMICONDUCTOR PINOUTS.40 PCB DRAWINGS.91 ELECTRICAL PARTS LIST.104 SCHEMATICS.129 WIRING DIAGRAM.146 harman/kardon, Inc. 250 Crossways Park Dr. Woodbury, New York 11797 Rev0 10/2006 RadioFans.CN 收音机爱 好者资料库Eachprecautioninthismanualshouldbefollowedduringservicing.Components identified with the IEC symbolin the parts list are special significance to safety. When replacing a component identified with, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in theparts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptablyinsulated from the supply circuit before retuming the product to the customer.Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are calledElectrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors andsemiconductor chip components.The following techniques should be used to help reduce the incidence of component damage caused by static electricity.1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge onyour body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,which should be removed for potential shock reasons prior to applying power to the unit under test.2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, toprevent electrostatic charge build-up or exposure of the assembly.3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.4. Use only an anti-static solder removal device. Some solder removal devices not classified as anti-static can generate electrical chargessufficient to damage ES devices.5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacementES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to thechassis or circuit assembly into which the device will be installed.Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing togetheror your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.CAUTION : AVR745 harman/kardonharman/kardon RadioFans.CN 收音机爱 好者资料库2SAFETY PRECAUTIONSThe following check should be performed for the continuedprotection of the customer and service technician.LEAKAGE CURRENT CHECKMeasure leakage current to a known earth ground (waterpipe, conduit, etc.) by connecting a leakage current testerbetween the earth ground and all exposed metal parts of theappliance (input/output terminals, screwheads, metaloverlays, control shaft, etc.). Plug the AC line cord of theappliance directly into a 120V AC 60Hz outlet and turn theAC power switch on. Any current measured must not exceedo.5mA.ANY MEASUREMENTS NOT WITHIN THE LIMITSOUTLINED ABOVE ARE INDICATIVE OF APOTENTIAL SHOCK HAZARD AND MUST BECORRECTED BEFORE RETURNING THE APPLIANCETO THE CUSTOMER.DeviceundertestTest allexposed metalsurfacesAlso test withplug reversed(Using AC adapterplug as required)AC Leakage TestLeakagecurrenttesterReading shouldnot be above0.5mAEarthground AVR745 harman/kardonharman/kardon 3AVR 745 TECHNICAL SPECIFICATIONS58TECHNICAL SPECIFICATIONSAudio SectionStereo Mode Continuous Average Power (FTC)100 Watts per channel, 20Hz20kHz, 0.07% THD, both channels driven into 8 ohmsSeven-Channel Surround Modes Power per Individual ChannelFront L&R channels:85 Watts per channel 0.07% THD, 20Hz20kHz into 8 ohmsCenter channel:85 Watts 0.07% THD, 20Hz20kHz into 8 ohmsSurround (L & R Side, L & R back) channels:85 Watts per channel 0.07% THD, 20Hz20kHz into 8 ohmsInput Sensitivity/ImpedanceLinear (High-Level)200mV/47k ohmsSignal-to-Noise Ratio (IHF-A)100dBSurround System Adjacent Channel SeparationPro Logic I/II 40dBDolby Digital (AC-3)55dBDTS55dBFrequency Response 1W (+0dB, 3dB)10Hz 130kHzHigh Instantaneous Current Capability (HCC)60 AmpsTransient Intermodulation Distortion (TIM)UnmeasurableSlew Rate40V/secFM Tuner SectionFrequency Range87.5108.0MHzUsable SensitivityIHF 1.3V/13.2dBfSignal-to-Noise RatioMono/Stereo 70/68dBDistortionMono/Stereo 0.2/0.3%Stereo Separation40dB 1kHzSelectivity400kHz, 70dBImage Rejection80dBIF Rejection90dBAM Tuner SectionFrequency Range5201720kHzSignal-to-Noise Ratio45dBUsable SensitivityLoop 500VDistortion1kHz, 50% Mod 0.8%Selectivity10kHz, 30dBVideo SectionTelevision FormatNTSCInput Level/Impedance1V p-p/75 ohmsOutput Level/Impedance1V p-p/75 ohmsVideo Frequency Response (Composite and S-Video)10Hz8MHz (3dB)Video Frequency Response (Component Video) 10Hz100MHz (3dB)HDMIVersion 1.1GeneralPower RequirementAC 120V/60HzPower Consumption120W at Power On, idle; 1,405W at rated power output (7 channels driven)DimensionsProductShippingWidth17-5/16 inches (440mm)20-1/16 inches (510mm)Height6-1/2 inches (165mm)10 inches (254mm)Depth17-1/16 inches (435mm)22-3/16 inches (565mm)Weight44 lb (19.9kg)51 lb (23.1kg)Depth measurement includes knobs, buttons and terminal connections.Height measurement includes feet and chassis.All features and specifications are subject to change without notice.Harman Kardon, Harman International and Logic 7 are registered trademarks of Harman International Industries, Incorporated.and are trademarks of Harman International Industries, Incorporated.Dolby, Pro Logic and the Double-D symbol are registered trademarks of Dolby Laboratories.Manufactured under license from Dolby Laboratories.DTS, DTS Surround, DTS-ES, DTS 96/24 and DTS Neo:6 are registered trademarks of DTS, Inc.A-BUS and A-BUS/READYare registered trademarks of Leisure Tech Electronics Pty Ltd Australia.SACD is a trademark of Sony Corporation.iPod is a registered trademark of Apple Computer, Inc.DLP and Texas Instruments are trademarks of Texas Instruments.Faroudja and DCDi by Faroudja are trademarks of Genesis Microchip, Inc.HD-DVD is a trademark of the DVD Format/Logo Licensing Corporation (DVD FLLC).HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.Microsoft,Windows and Windows Media are registered trademarks of Microsoft Corporation in the United States and other countries.XM-Ready is a registered trademark of XM Satellite Radio, Inc. The BridgeTMSupplied AccessoriesThe AVR 745 is supplied with the following accessory items. Please note that they are packed in different boxes, so it is important to check each individual box before reportingmissing items. If any item is missing, please contact Harman Kardon customer service at . TC 30 remote control TC 30 software CD-ROM microphone Battery for the TC 30 TC 30 installation guide Extender rod for microphone USB cable for the TC 30 ZR 10 remote control AM loop antenna TC 30 charging cradle Two AAA batteries for ZR 10 FM wire antenna Charger for the TC 30 AC power cordPlease register your product on our Web site at . NOTE:Youll need the serial number of your AVR.At the same time, you can chooseto be notified about our new products and/or special promotions.AVR 745 OM 5/15/06 5:00 PM Page 58 AVR745 harman/kardonharman/kardon 4 AVR745 harman/kardonharman/kardon 5LEGEND FOR AVR745 PACKAGE PAGEAVR745 US Packing Part ListItem #Part NumberDescriptionQty1LABEL BARCODE AVR745US22ZKD2704HA00-RBOX CARTON AVR745US13ZKD2701HA00-ROWNERS MANUAL AVR745US14ZQD1201HAWH-RCUSHION POLY EPS RIGHT15FILM SHEET PE 920 X 100016H03-WAUSA2103BK-RPOWER CORD WS-004C+002E SJT#14*2C L=2M17ZQD1202HAWH-RCUSHION POLY EPS LEFT 18ZKD2802HA04-RAVR745 TOTAL ACCESSORY BOX19H03-RYD2701HB00-RREMOCON W/ ACCESSORY BOX AVR745US110ZBP00122051-RBAG PE 330 X245 T0.05111ZKD2716HA00-RQUICK SETUP GUIDE AVR745112ZKC1214HA00-RLABEL SAFETY LEAFLET113ZKC1113HA00-RCARD WARRANTY114ZKD1263HA00-RBROCHURE AVR US115ZKC1263HA00-R-0INSERT RS232 NOTE PAPER116H03-ZPD1212INBK-RMICROPHONE ASSY EXTENSION PIECE117BOX ANTENNA118ZBP00161851-RBAG PE 160X180MM119H03-WAB01200203-RANTENNA WIRE 75 T15011N-1120H03-ATALF039ABK-RANTENNA WIRE ANTENNA LOOP-300121ZBP00020350-RPOLYBAG BATTERY122BATTERY ALKALINE 1.5V AAA223ZKD2802HA03-RBOXZONE I1 REMOTE CONTROLLER124H03-RYD2702HA00-RREMOCON ZONE 2 AVR745125ZKD2802HA02-RBOX MIC126H03-MCD12TWBKNN-RMICROPHONE ASSY1 AVR745 harman/kardonharman/kardon 6FRONT-PANEL CONTROLS1 Standby/On Switch2 Surround Mode Group Selector 3 Surround Mode Selector4 Tuning Selector 5 Tuner Band Selector6 Preset Station Selector7 Input Source Selector8 Tuning Mode Selector9 Front-Panel Door) Volume Control! Input Indicators Speaker/Channel Input Indicators# Upper Display Line $ Lower Display Line % Surround Mode Indicators Remote Sensor WindowFRONT-PANEL CONTROLSFRONT-PANEL CONTROLS5 5The following controls and indicators are available on the AVR 745s front panel:The following controls and jacks are located behind the front-panel door.To open the door, place the edge of a finger on the left or right edge of the panel and gently swing thedoor down toward you.A Main Power Switch B Headphone JackC Tone Mode ButtonD Speaker Selector ButtonE Channel Adjust Selector F Digital Input SelectorG Delay Adjust Selector H / ButtonsI Set ButtonJ EzSet/EQII Microphone JackK Optical 4 Digital InputL Input/Output Status IndicatorsM Coaxial 4 Digital JackN Video 4 Input/Output Jacks1 Standby/On Switch: When the Main PowerSwitch A is “ON,” press this button to turn on theAVR 745; press it again to turn the unit off. Note thatthe illumination surrounding the switch will turn bluewhen the unit is on, or in the Multiroom mode.2 Surround Mode Group Selector: Press this but-ton to select the top-level group of surround modes.Each press of the button will select one of the sur-round mode categories. Once the button is pressed sothat the name of the desired surround mode categoryappears in the on-screen display and in the LowerDisplay Line $, press the Surround ModeSelector 3 to cycle through the individual modesavailable. For example, press this button to select Dolbymodes, and then press the Surround Mode Selector3 to choose from the various mode options.3 Surround Mode Selector: Press this button to select from among the available surround modeoptions for the surround mode category selected.The specific modes will vary based on the number ofspeakers available, the surround mode category andwhether the input source is digital or analog. For exam-ple, press the Surround Mode Group Selector 2to select a category such as Dolby or Logic 7, andthen press this button to see the specific mode choicesthat are available. For more information on modeselection, see pages 40 42.NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product .2 4 5 6 7 9 ! # % 3 8 A B D E F G H H I J K L L N M ) $ 1 C AVR 745XMFMAM USB DMP TAPE 8CH 6CH DVD DIGITAL PRO LOGIC IIxHEADPHONEVIRTUAL SPEAKER57CH. STEREO EQ 1 2 3 DIRECT DSP SURR. OFF CDMI HDMI VID 34 VID 12 AVR 745 OM 5/15/06 5:00 PM Page 5 AVR745 harman/kardonharman/kardon 7FRONT-PANEL CONTROLS6 FRONT-PANEL CONTROLS4 Tuning Selector: Press the left side of the buttonto tune lower-frequency stations and the right side ofthe button to tune higher-frequency stations.When the tuner is in the MANUAL/MONO mode,each tap of the Selector will increase or decrease thefrequency by one increment.When the tuner receivesa signal strong enough for adequate reception,MANUAL TUNED will appear in the LowerDisplay Line $ and in the on-screen display.Whenthe tuner is in the AUTO/STEREO mode,press the button once, and the tuner will scan for astation with acceptable signal strength.When the next higher- or lower-frequency station is tuned, thefrequency scan will stop and the Lower Display Line$ and the on-screen display will indicate AUTOTUNED.When an FM stereo station is tuned, thedisplay will read AUTO ST TUNED. See page45 for more information on using the tuner.When anXM-Ready module is connected and activated, andwhen there is sufficient signal strength for the XM system to operate, pressing this button will change the XM Radio channel.5 Tuner Band Selector: Pressing this button willautomatically switch the AVR 745 to the Tuner mode.Pressing it again will select the AM or FM frequencyband, or XM Radio. (See page 45 for more informa-tion on the tuner.)6 Preset Station Selector: Press this button toscroll up or down through the list of stations that havebeen entered into the preset memory. (See page 46for more information on tuner programming.)7 Input Source Selector: Press this button tochange the input by scrolling up or down through thelist of input sources.8 Tuning Mode Selector: Press this button to selectAuto or Manual tuning.When the button is pressed sothat AUTO/STEREO appears in the UpperDisplay Line #, the tuner will search for the next station with an acceptable signal when the TuningSelector 4is pressed.When the button ispressed so that MANUAL/MONO appears in theUpper Display Line #, each press of the TuningSelector 4will increase the frequency. (Seepages 4546 for more information on using the tuner.) This button may also be used to switch between Stereoand Mono modes for FM radio reception.When weakreception is encountered, select the Manual/Mono tuning mode. Press and hold again to switch back toStereo mode. (See pages 4546 for more informationon using the tuner.) When an XM Connect & Play module is connectedand activated, and when there is sufficient signalstrength for the XM system to operate, this button hasa different set of functions than when traditional AM orFM radio is in use. See page 46 for more informationon XM Radio operation.9 Front-Panel Door: To open the door so that thefront-panel jacks and controls behind this door may beaccessed, gently pull the door down and toward you,using either upper corner of the door.) Volume Control: Turn this knob clockwise toincrease the volume, counte
