Akai-MPC1000-mpc-sm维修电路原理图.pdf

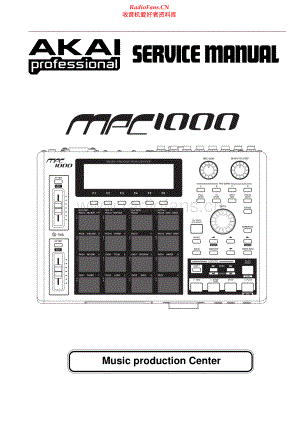

SERVICE MANUAL1Music production CenterRadioFans.CN 收音机爱 好者资料库SERVICE MANUAL2SAFETY INSTRUCTIONSINFORMATIONS1. Parts identified by the ? symbol are critical for safety.Replace them only with the parts number specified.2. In addition to safety, other parts and assemblies arespecified for conformance with such regulations as thoseapplying to spurious radiation.These must also be replaced only with the specifiedreplacements.Examples : Noise blocking capacitors, noise blocking filters,etc.3. Use specified internal wiring. Note especially :1) Wires covered with PVC tubing2) Double insulated wires3) High voltage leads4. Use specified insulating materials for hazardous live parts.Note especially :1) Insulation Tape2) PVC tubing3) Spacers (insulating barriers)4) Insulation sheets for transistors5) Plastic screws for fixing micro switches5. When replacing AC primary side components (trans-formers, power cords, noise blocking capacitors, etc.),wrap the ends of the wires securely around the terminalsbefore soldering.6. Make sure that wires do not contact heat producing parts(heat sinks, oxide metal film resistors, fusible resistors,etc.).7. Check that replaced wires do not contact sharp edged orpointed parts.8. Also check areas surrounding repaired locations.9. Make sure that foreign objects (screws, solder droplets,etc.) do not remain inside the set.SAFETY CHECK AFTER SERVICINGAfter servicing, make measurements of leakage-current orresistance in order to determine that exposed parts areacceptably insulated from the supply circuit. The leakage-current measurement should be done between accessiblemetal parts (such as chassis, ground terminal, microphonejacks, signal input/output connectors, etc.) and the earth groundthrough a resistor of 1500 ohms paralleled with a 0.15 ? Fcapacitor, under the units normal working conditions.The leakage-current should be less than 0.5 mA rms AC. Theresistance measurement should be done between accessibleexposed metal parts and power cord plug prongs with thepower switch (if included) “ON”. The resistance should bemore than 2.2 M ohms.SYMBOLS FOR PRIMARY DESTINATIONUnit destinations are indicated with letters as shown below.SymbolsPrincipal DestinationsAU.S.ABEnglandEEuropeJJapanVGermanyX1JapanX4Universal AreaMAKE YOUR CONTRIBUTION TO PROTECT THEENVIRONMENTUsed batteries with the ISO symbol for recycling aswell as small accumulators (rechargeable batteries),mini-batteries (cells) and starter batteries should notbe thrown into the garbage can.Please leave them at an appropriate depot.PRECAUTIONS FOR LITHIUM BATTERYThe lithium battery may explode when incorrectly replaced.OBSERVE THE FOLLOEING WHEN REPLACING?Replace with the same make and type or equivalent recommended by manufacturer.?Place battery in correct polarity.?Do not short the terminals.?Do not charge battery.?Do not dispose of battery in fire.RadioFans.CN 收音机爱 好者资料库SERVICE MANUAL3* The specifications are subject to change without the prior notice.I. SPECIFICATIONSGeneralDisplay240 x 64 dot graphic LCD w/back lightMemory card slotCompact Flash (The size of the compact flash card the MPC1000 can handle is from 32MB to 2GB)Dimentions (W x H x D)330 x 75.5 x 228.2(Max 234.6)Weight3.45kgPower reqirement19WSound generatorSampling rate44.1kHzMemory capacity16MB standard (11.5MB for sound memory), expandable to 128MBRecording time136sec. (16MB, MONO), 24m28sec. (128MB, MONO)Memory expansion slot1 x for optional EXM128Data format16-bit linearPolyphony32Dynamic filtering2 x 2-pole filter per voiceFilter typeLow pass, Band pass, High passPreset sound memory5MBNumber of programs24EffectsEffects2 stereo effects and Master effectEffect typeChorus, Flanger, Bit grunger, 4 band EQ, Compressor, Phase shifter,Tremolo, Flying pan, ReverbMaster effect: 4 band EQ, CompressorSequencerMaximum events100,000 notesResolution96 parts per 1/4-noteSequences99Tracks per sequence64MIDI output channels32 (16 channels x 2 outputs)Song mode20 songs, 250 steps per songDrum pad16 (velocity and pressure sensitive)Drum pad banks4Sync mode MIDI clockRadioFans.CN 收音机爱 好者资料库SERVICE MANUAL4* The specifications are subject to change without the prior notice.Inputs / OutputsRecord input (L and R)1/4-inch stereo phone x 2, balanced -40dBu, input impedance 11k ohms; Max. Input level +10dBuDigital inputRCA-pin x 1 S/PDIFStereo output (L and R)1/4-inch phone x 2 unbalanced +11dBu, output impedance 1k Ohms, Max. output level +17dBu4 individual outputs1/4-inch phone x 4 unbalanced +11dBu, output impedance 1k Ohms, Max. output level +17dBuPhones output1/4-inch stereo phone x 1, 200mW / 100 ohmsDigital outputRCA-pin x 1 S/PDIFMIDI inputs5-pin DIN x 2MIDI outputs5-pin DIN x 2USBSlave connector x 1, USB MASS STORAGE CLASS support.(You need Windows 2000/Me/XP or later version, or MacOS 9.x/10.x or later version. )Footswitches1/4-inch phone x 2Standard accessoriesStandard accessories32MB Compact Flash card, Power cable, Operators manualOptionsEXM128128MB expansion memory cardData Compatibility (THRU Computer)MPC2000XLSEQ, WAV, PGM (Most parameters of PGM file can be loaded.)MPC4000SEQ, WAV , PGM (DRUM program only. Only note assign and tune are loaded.)MPC3000No compatibilityZ4/Z8WAV onlyS5000/6000WAV onlyS1000/3000No compatibilityRadioFans.CN 收音机爱 好者资料库SERVICE MANUAL5II. DISASSEMBLYIn case of trouble, etc., necessitating dismantling, please dismantle in the order shown in the illustrations. Reassemble in thereverse order.ZS-820454XZS-820455XZS-820454XZS-820454XZS-820454XZS-820454XRadioFans.CN 收音机爱 好者资料库SERVICE MANUAL6III. PRINCIPAL PARTS LOCATIONBA - L4033A502DPC OPERATION - F BLKBA - L4033A502APC OPERATION - R BLKBA - L4033A502CPC OPERATION - L BLKBA - L4033A502BPC PAD BLKBA - L4033A502EPC MIDI BLKBA - L4033A501EPC FILTER BLKBA - L4033A501APC CPU BLKBA - L4033A501DPC HD CONNECT BLKBA - L4033A501CPC FRONT BLKBA - L4033A501BPC AD/DA BLKEM - 821776XIND LCD PS24064LRU - ETA - H03BP - 821839XSW POW SNP - 9031RadioFans.CN 收音机爱 好者资料库SERVICE MANUAL7IV. SUPPLEMENTARY INFORMATIONUpdate procedure =How to copy the OS binary file to a CF card using a MPC1000 and a computer= Below procedure will utilize the MPC1000 as a Compact flash writer. Required Equipment : Compact Flash (CF), Computer with USB mass storage class support (Windows XP/ME/2000 or Mac OSX, OS9.x) 1. Copy/Download the OS data to a computer s hard disc drive and extract it s data. 2. Insert a Compact Flash card into the MPC1000. 3. Turn on the power of the MPC1000. 4. Go to Load mode, then press USB (F4). 5. Connect a USB cable between the computer and the MPC1000. (Display will change from “Status=Not Connected ” to “Status=Connected ”) 6. The CF in the MPC1000 will be mounted as a drive on the computer. 7. Copy the OS binary file to the CF in the MPC1000. 8. Disconnect the USB cable. (MPC1000 will not accept any user in put while a USB cable is connected) Note: The OS data can also be copied to a Compact Flash card using any other Compact Flash card reader/writer. In this case it is not necessary to connect the MPC1000 to a computer. =How to update the MPC1000= MPC1000 is updated using a Compact Flash card containing OS data. Insert a CF containing OS data into the MPC1000. Turn on the power of the MPC1000 while pressing down the “Window” button. To start the update process, p ress the “REC” button. After the update process is finished the MPC1000 will re- boot automatically.Note: The MPC1000 can not be updated from a computer via USB directly updating is only possible using a CF card. =Hidden model=( Note: V1.06 is not supported.) The MPC1000 has the following hidden modes, which can be accessed by certain input sequences or holding down a key while powering on the unit. Currently these modes are not supported in OS Version 1.06. Owner Name Mode Other F3/FOOTSW F6 Enter owner name in the startup screen, “Owner Name” will be displayed. Initialize parameter Hold down the ERASE button while powering on the unit. Memory Check Hold down the PLAY button while powering on the unit. Demo mode Hold down the Bank “D” button while powering on the unit. In this mode “Internal memory” on the Save page can not be selected . In the startup screen “Demo” will be displayed instead of “MPC1000”. Once demo mode has been activated it will remain active even if power is turned off and on again.To turn off the Demo mode, hold down the Bank “D” button while powering on the unit. 1.2.3. 1.2.3. 4.RadioFans.CN 收音机爱 好者资料库SERVICE MANUAL8Test program Test programs on the MPC1000 can be run either using a Test OS or a JIG PC Flash Rom. Running the test Program using a Test OSA test program can be installed on the MPC1000 by updating it with a Test OS. The Test OS must be copied to a CF card from which it will be written to the Flash ROM of the MPC1000. The installation procedure is the same as for a normal OS update. For a description of the test mode functions, refer to the “MPC1000 Test Program list”. Note: Once the Test OS is installed, the unit will always start up using the Test OS, until the regular OS is re-installed. Running the test Program using a JIG PC Flash ROM MPC1K (AJ - 771312J) The PC Flash ROM is used during repair for the testing jig and boot block recovery. To access the test program on the PC Flash ROM MPC1K follow this procedure: 1. Turn off the MPC1000 and open the unit. 2. Insert the PC Flash MPC1K ROM into J110 on the CPU board. 3. Turn on the MPC1000 to start up the Test OS from the PC Flash ROM. MPC1000 TEST OSStarting DisplayStarting DisplayF1F1F2F2F3F3F4F4F5F5F6F6PANELPANELMEMORYMEMORYAUDIOAUDIOMIDI-MIDI-F.SW-F.SW-PANEL TESTPANEL TESTMEMORY TESTMEMORY TESTA/D selected SPDIF selectedtest toneA/D selected SPDIF selectedtest toneOUTA IN 1:OK OUTB IN2 FAILEDOUTA IN 1:OK OUTB IN2 FAILEDF.SW1 : ON F.SW2 : OFFF.SW1 : ON F.SW2 : OFFF1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6-KEY-KEY-JOG-JOG-PAD-PAD-LCD-LCD-LED-LED-EXIT-EXIT-SDRAMSDRAM-CF-CF-HDD-HDD-DSP-DSP-FLASHFLASHEXIT-EXIT-A/D-A/D-SPDIFSPDIFTONE-TONE-EXIT-EXIT-STARTSTART-EXIT-EXIT-EXIT-EXIT-(Each connection result dislayed)(Each connection result dislayed)(Foot SW status displayed)(Foot SW status displayed)SDRAM TESTSDRAM TESTCF CARD TESTCF CARD TESTHDD TESTHDD TESTFLASH WRITINGFLASH WRITINGF1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6F1F1F2F2F3F3F4F4F5F5F6F6SIMPLSIMPLFULL-FULL-EXIT-EXIT-SIMPLSIMPLDETECDETECSECTRSECTRBACUPBACUPERASEERASEEXIT-EXIT-SIMPLSIMPLDETECDETECSECTRSECTRBACUPBACUPERASEERASEEXIT-EXIT-P_OS-P_OS-USB-USB-LIBC-LIBC-LIBH-LIBH-EXIT-EXIT-By Pressing Keys correspond 35 boxes change to negative.(#1)By Pressing Keys correspond 35 boxes change to negative.(#1)JOG,FADER1,FADER2,input,value,displyedJOG,FADER1,FADER2,input,value,displyedEach Pad No., and input value displayed. Plural input displayed ErrorEach Pad No., and input value displayed. Plural input displayed ErrorAll dot of LCD change to Black. Contrast adjusting by JOGAll dot of LCD change to Black. Contrast adjusting by JOGAll LEDs lightAll LEDs light(#2)When press Keys with LED, LED light while pressing switches. (#1Press F6 twice = EXIT) (#2)When press Keys with LED, LED light while pressing switches. (#1Press F6 twice = EXIT) SDRAM simple checkSDRAM simple checkSDRAM all area READ/WRITE checkSDRAM all area READ/WRITE checkCF card simple checkCF card simple checkType of CF card displayType of CF card displayCF card all area READ/WRITE checkCF card all area READ/WRITE checkFor developmentFor developmentDelete CF card dataDelete CF card dataHDD simple checkHDD simple checkType of HDD displayedType of HDD displayedHDD all area READ/WRITE checkHDD all area READ/WRITE checkFor developmentFor developmentDelete HDD dataHDDDelete HDD dataHDDNo functionNo functionWrite Test OS to Flash ROMWrite Test OS to Flash ROMData (OS/Liblary) transport via USBData (OS/Liblary) transport via USBNo functionNo functionNo functionNo functionA/D inputting signal output to all OUTPUT.A/D inputting signal output to all OUTPUT.SPDIF inputting signal output to all OUTPUT. (#3)SPDIF inputting signal output to all OUTPUT. (#3)FULL bit signal output to all OUTPUT.FULL bit signal output to all OUTPUT.(#3)A/D-L MAIN-L, 1,3 A/D-R MAIN-R, 2,4(#3)A/D-L MAIN-L, 1,3 A/D-R MAIN-R, 2,4Start Loop back Test, MIDI OUT A - MIDI IN 1, MIDI OUT B - MIDI IN 2Start Loop back Test, MIDI OUT A - MIDI IN 1, MIDI OUT B - MIDI IN 2RadioFans.CN 收音机爱 好者资料库SERVICE MANUAL9V. PARTS LISTHOW TO USE THIS PARTS LIST1. This Parts List lists those parts which are considered necessary for repairs.2. Parts not shown in the Parts List will not in principle be supplied.3. How to read the Parts List.WARNING? ? ? ? ? INDICATES SAFETY CRITICAL COMPONENTS. FOR CONTINUED SAFETY, REPLACE SAFETY CRITICALCOMPONENTS ONLY WITH MANUFACTURERS RECOMMENDED PARTS.AVERTISSEMENT? ? ? ? ? IL INDIQUE LES COMPOSANTS CRITIQUES DE SCURIT. POUR MAINTENIR LE DEGR DE SCURITDELAPPAREIL, NE REMPLACER QUE DES PICES RECOMMANDEES PAR L FABRICANT.1. PC MAIN BOARD BLKRef. No.Part No.DescriptionD5ED-431276CD SCHOT 1S30-J T05D110ED-431276CD SCHOT 1S30-J T05:IC5EI-811073JICTRC-6593IC10EI-811068JIC HD74HC157FPService parts classificationThese reference symbols correspond with componentsymbols in the Schematic Diagrams.2. FINAL ASSEMBLY BLKRef. No.Part No.Description1.SA-349332FOOT2.ZS-344754CST PAN30 x06STL CMT:44.SP-417333JCOVER TOP45.ZS-418385JBT BID30X06STL BNI EATRH LOCK46-A? EW-380905JAC CORD 250S KP300 KS16AH B J J46-B? EW-368420J1AC CORD 200SKP30KS B AC A46-C? EW-410608JAC CORD 250 KP4819D KS31A B EE,VSymbols for primary destinationA U.S.A.J JapanB EnglandV GermanyE Europex1 JapanX4 Universal AreaSafety critical componentThis number corresponds with the individual parts index numberin the figure.ATTENTION1. When placing an order for parts, be sure to list the Part No., Model No. and the description of each part.Otherwise, the non-delivery of the part or the delivery of a wrong part may result.2. Please make sure that Part No. is correct when ordering.If not, a part different from the one you ordered may be delivered.3. Since the parts shown in Parts List or Preliminary Service Manual may have been the subject of changes,please use this Parts List for all future reference.RadioFans.CN 收音机爱 好者资料库SERVICE MANUAL10Ref. No.Part No.DescriptionRef. No. Part No.DescriptionIC203EI - 812479JIC NJM5532M FPT1T32PIC204EI - 812479JIC NJM5532M FPT1T32P1BA - L4033A020A PC(#) MAIN BLK MPC1000IC301EI - 812479JIC NJM5532M FPT1T32P2BA - L4033A030A PC(#) OPERATION BLK MPC1000IC302EI - 812479JIC NJM5532M FPT1T32PIC401EI - 812479JIC NJM5532M FPT1T32PPC(#) MAIN BLK CONSISTS OF FOLLOWING P.C. BOARDS.IC402EI - 812479JIC NJM5532M FPT1T32P1BA - L4033A501A PC CPU BLKIC501EI - 812479JIC NJM5532M FPT1T32P2BA - L4033A501B PC AD/DA BLKIC502EI - 812479JIC NJM5532M FPT1T32P3BA - L4033A501C PC FRONT BLKIC601EI - 821828XIC AD1839AS QFTY4BA - L4033A501D PC HD CONNECT BLKIC602EI - 821830XIC CS8427-CS FP5BA - L4033A501E PC FILTER BLKIC603EI - 438820J
